Lutron DW-6092 3 Phase Power Analyzer
3 Phase Power Analyzer
Model: DW-6092
Lutron - Taiwan

FEATURES
Analysis for 3 phase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
Voltaae & Current are the True RMS value.
True Power ( ‘fJN • MW • GW lmeasurement.
An”-“rent Power < KVA • MVA • GVA lmeasurement.
Reactive Power ( KVAR MVAR • GVAR) measurement.
Watt-Hour ( WH • SH • OH • PFH l.
Power Factor( PF ) • Phase Angle( <ll ).
Voltaae measurement ranae : 10 to 600 ACV
Current measurement ranae: 0.2A to 1200 ACA.
Proorammable CT ratio (1 to 600) and PT ratio (1to 1000).
ACV inout imoedance is 10 Meaa ohms.
Safetv Standard : !EC 1010,CAT III 600V
Built-in clock and Calendar, real time data record with SD memory card ,sampling time set from 2 to 7200 seconds. Just slot in the SD card into the computer, it can down load the all the measured value with the time information ( year/month/data/
hour/ mimute/second ) to the Excel directly,then user can make the further data analvsis by themselves.

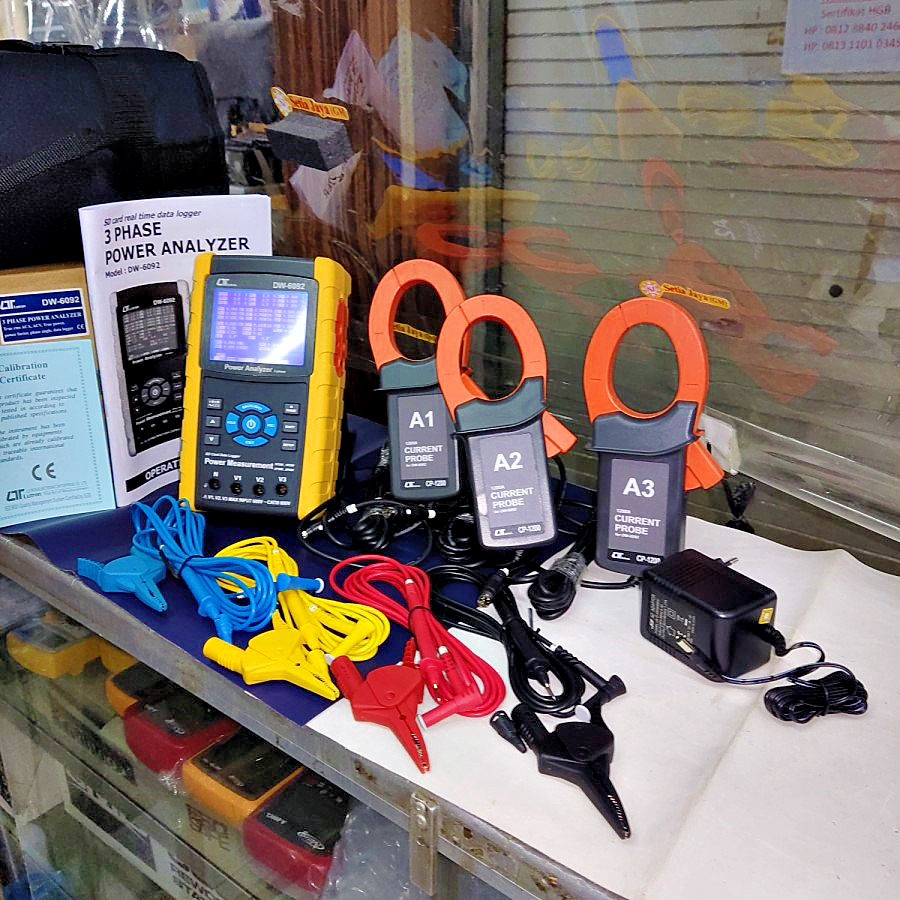

Complete set w ith 4 PCs Test Leads,4 PCs Alligator clips, 3 PCs Clamp Probe, AC to DC 9V adapter, 2 G SD memorv card and Carrvina baa.
Computer data output, can cooperate w ith USB Cable / USB-01 RS232 cable/ UPCB-02 and Data Acquisition software, SW-U811 WIN.
